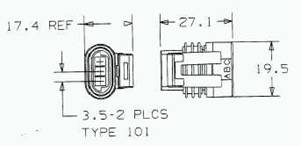

3 - Pin Metri-Pack - Ignition Module

Pin

Function

Wire Color

Junction Location

Junction Color

A

Crank Position Sensor Signal

YEL

Crank Sensor

YEL

B

Not Used

N/A

N/A

N/A

C

Crank Position Sensor Signal

PPL

Crank Sensor

PPL

2 - Pin Metri-Pack - Ignition Module

Pin

Function

Wire Color

Junction Location

Junction Color

A

Ground

BLK

Chassis

BLK

B

�+12v Feed Fused 15-amp

RED

Fuse Block

RED
