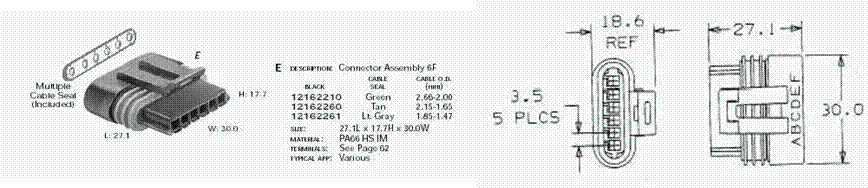

| 6 - Pin Metri-Pack 150 - Ignition Module | ||||||||||
| Pin | Function | Wire Color | Haltech Location | Haltech Color | ||||||
| A | Ignition Module Bypass | GRN/BLK | J7 - Aux Out; Pin A | GRN/BLK | ||||||
| B | Ignition Control Input | L. GRN | J7 - IGN Out; Pin C | L. GRN | ||||||
| C | RPM Signal to Tach | GRN | C500; Pin C3 | WHT | ||||||
| D | Not Used | N/A | N/A | N/A | ||||||
| E | Fuel Control Ref. HI | YEL <SHD> | J16 - Trigger; Pin B | YEL <SHD> | ||||||
| F | Fuel Control Ref. Output LO | BLK | J16 - GND; Pin A | BLK | ||||||
|
||||||||||
