3.4 DOHC DIS Connectors Diagram

3.4 DOHC DIS Connectors Diagram

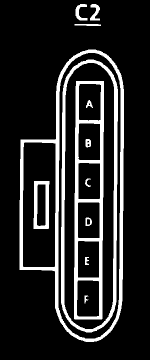

Application Position Wire Color CKT Description
  C1(A) Black/White 450 Ground to G101
  C1(B) Pink/Black 239 Fused feed to DIS
  C2(A) Tan/Black 424 Bypass control input
  C2(B) White 423 Electronic spark timing signal output
With Gages Only C2(C) White 121 Tachometer feed to instrument cluster
  C2(E) Purple/White 430 Distributor reference pulse high
  C2(F) Black/Red 453 Distributor reference pulse low
  C3(A) Yellow 573 DIS (+) crankshaft sensor feed
  C3(C) Purple 574 DIS (-) crankshaft sensor return
