30 LED Lambda Meter
Reprinted from: http://jobywbmeter.webhop.net with permission from the author Jonas Bylund.

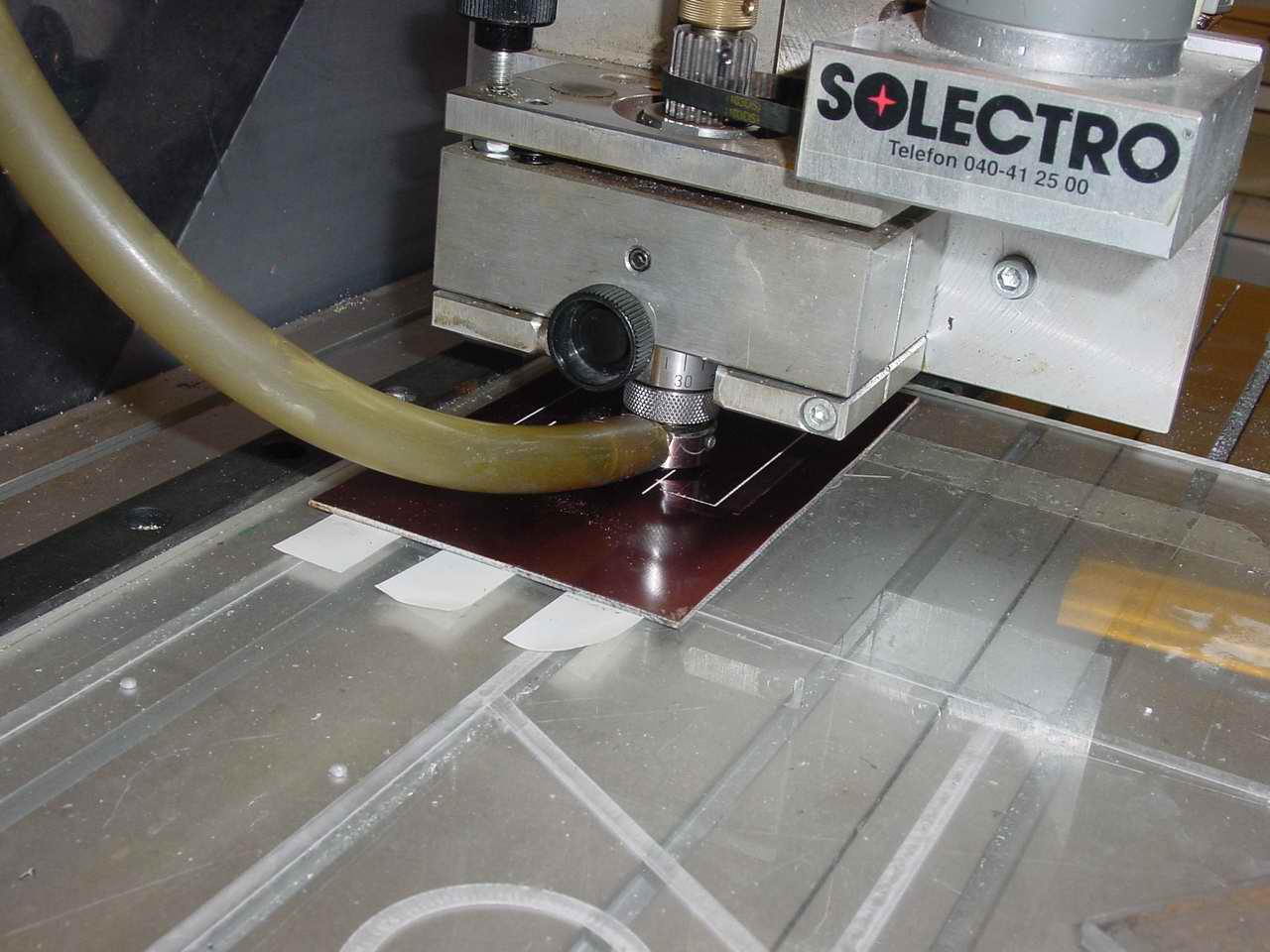

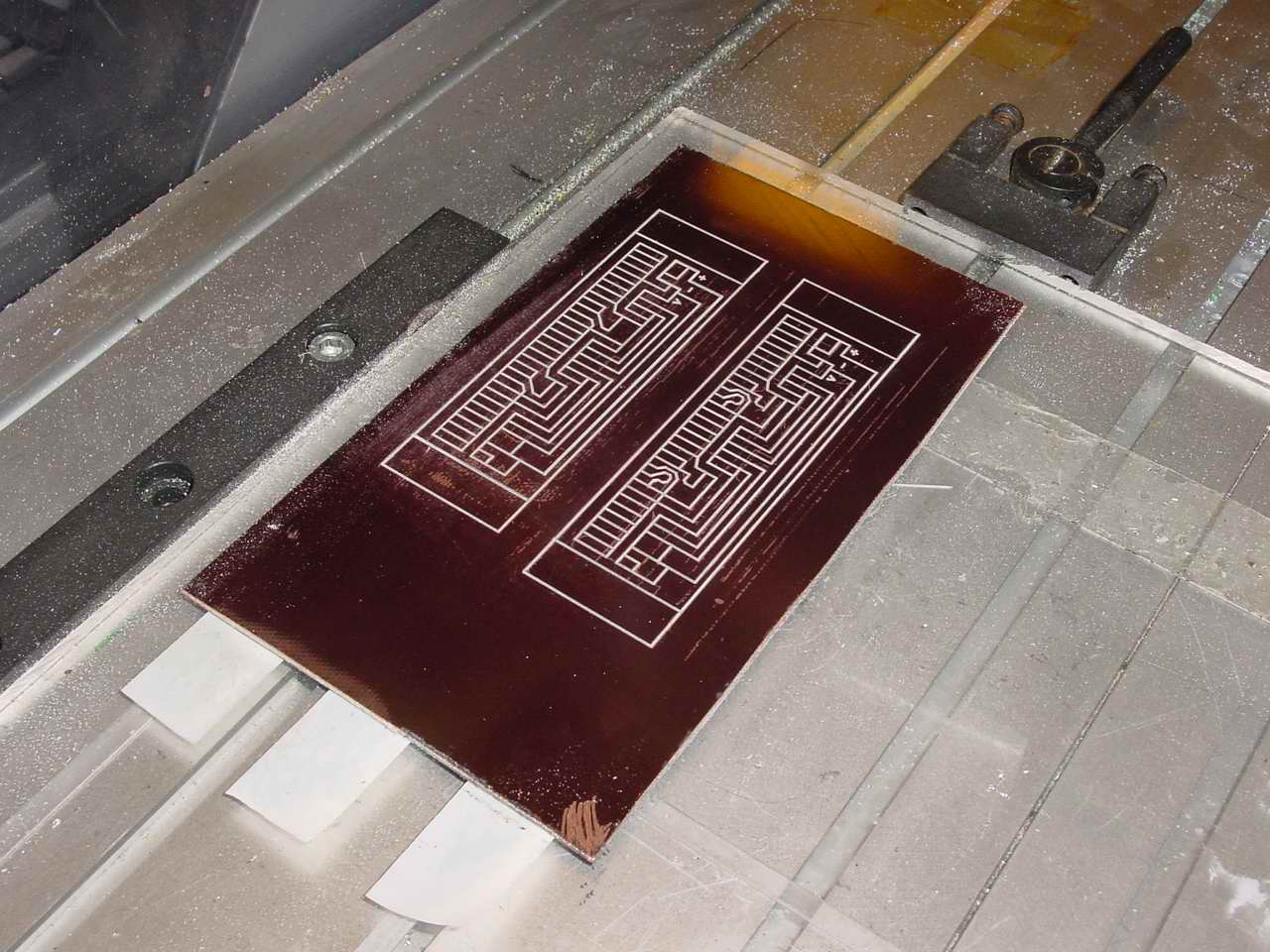

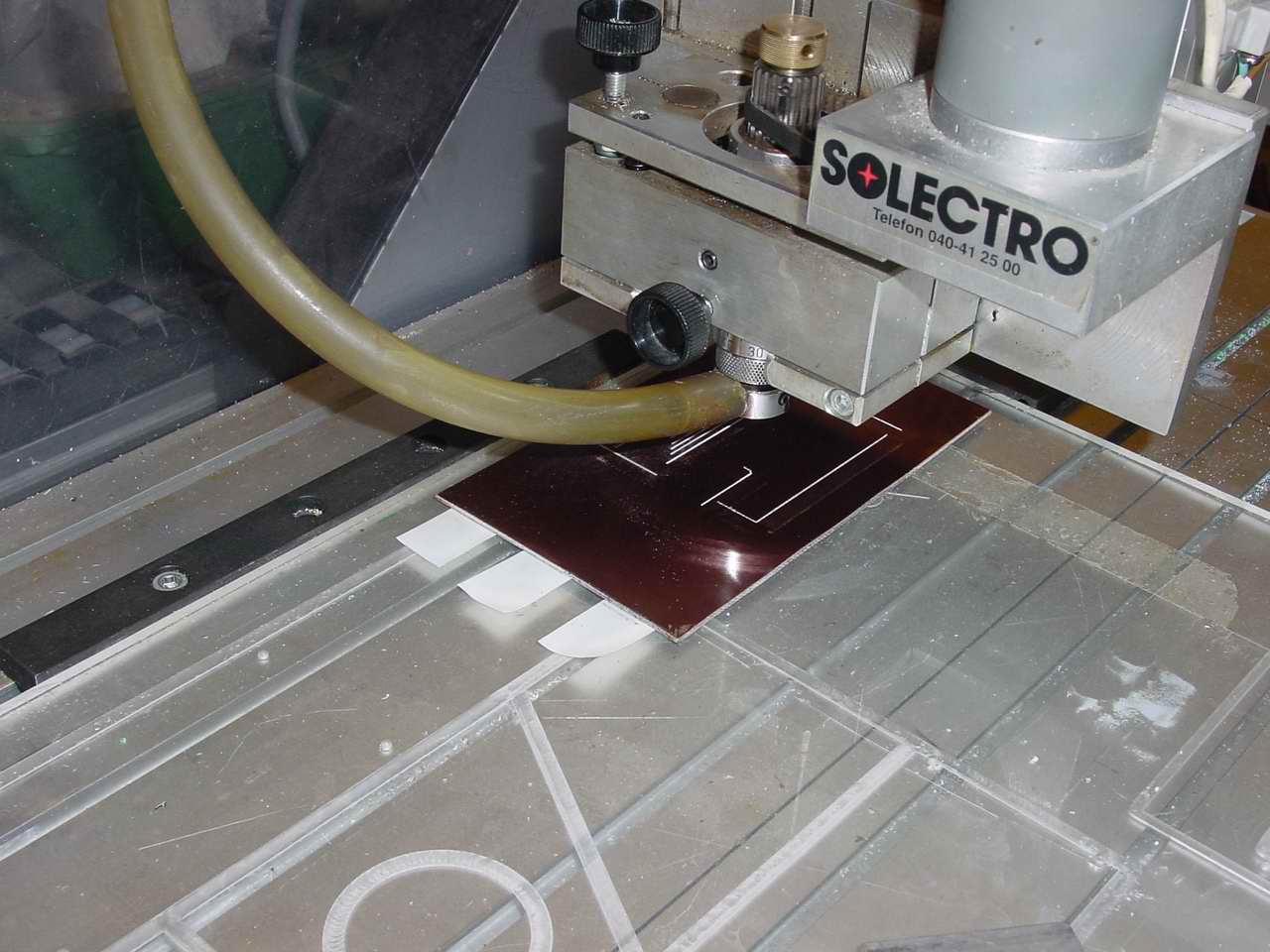

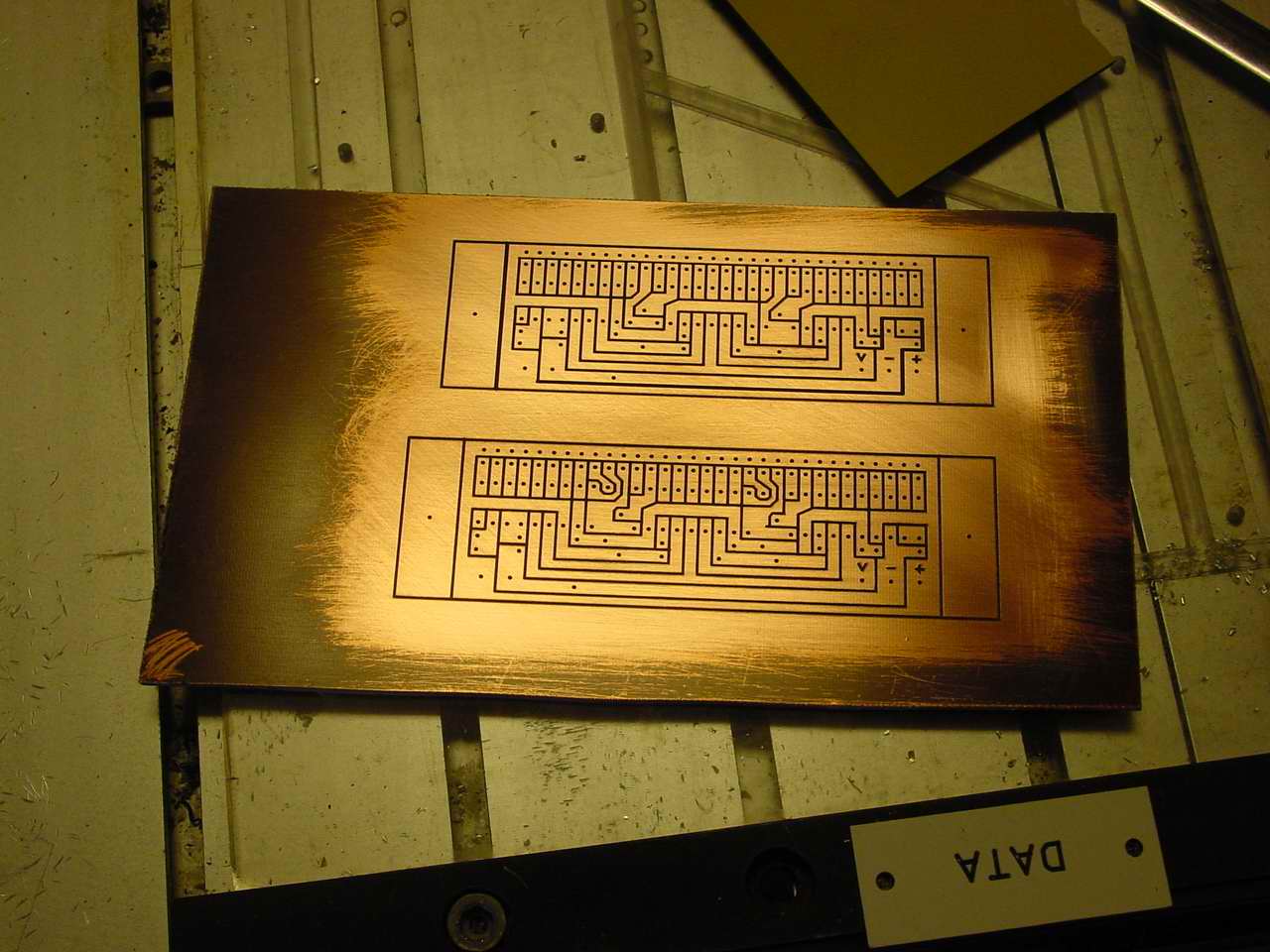

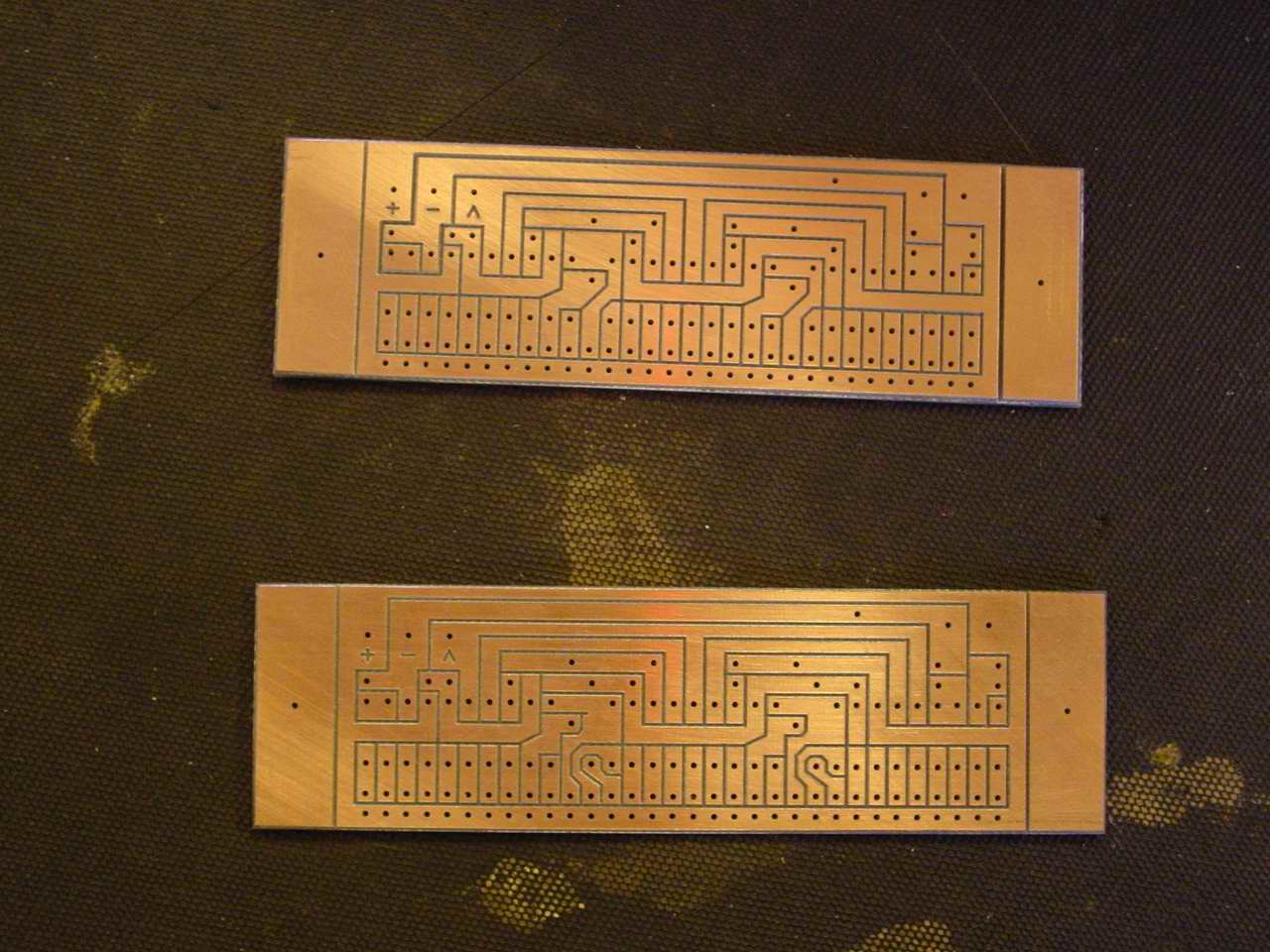

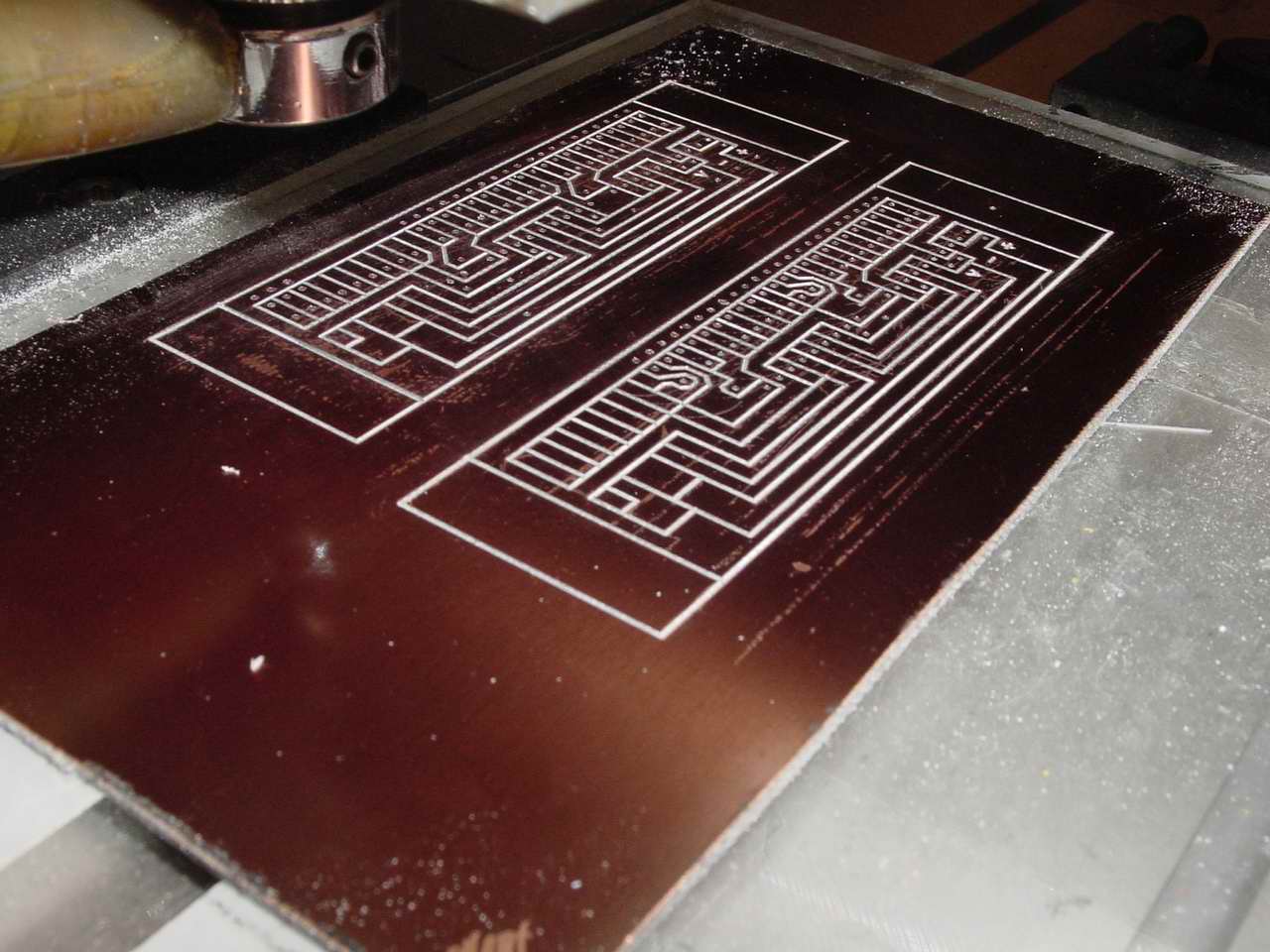

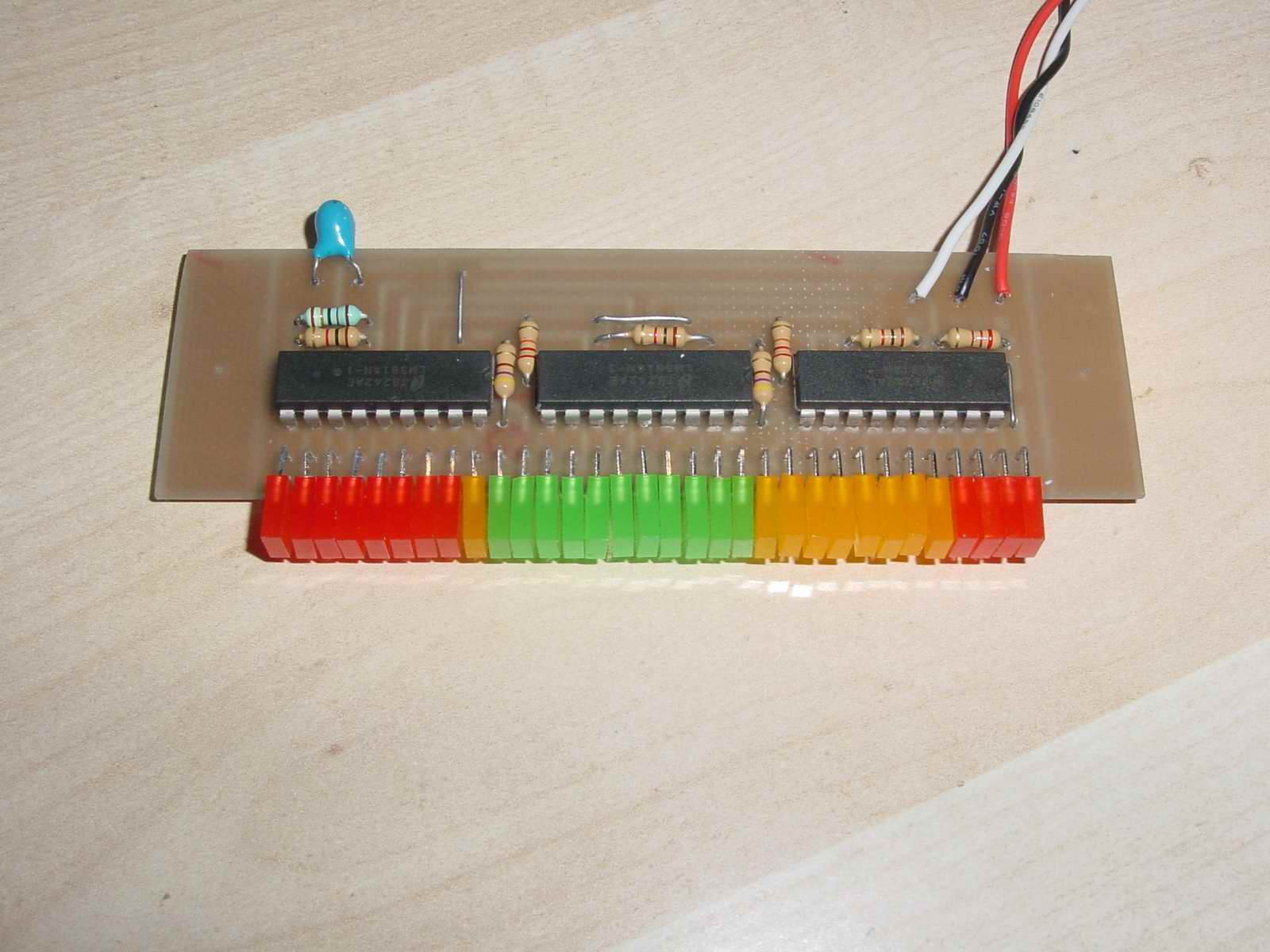

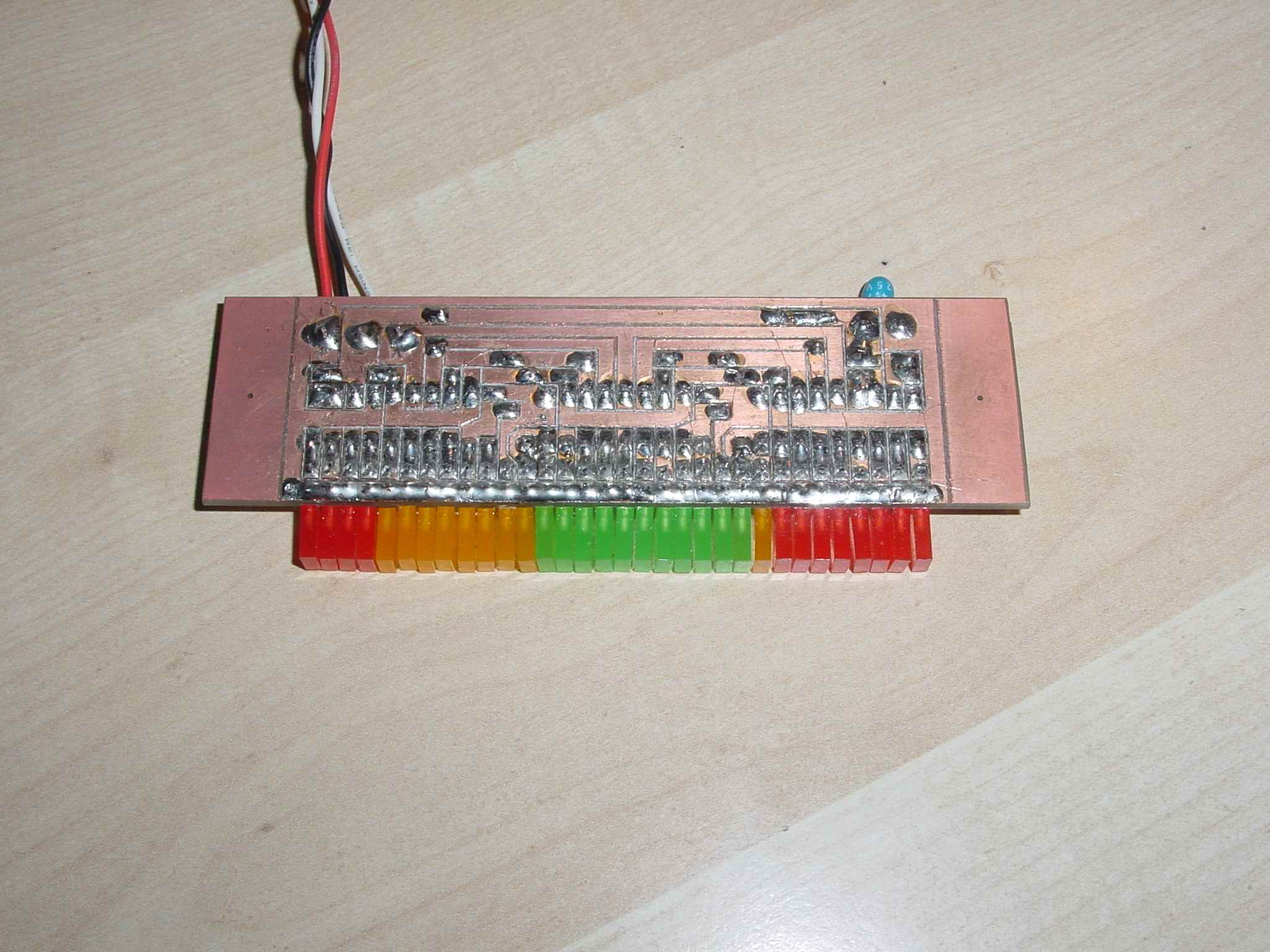

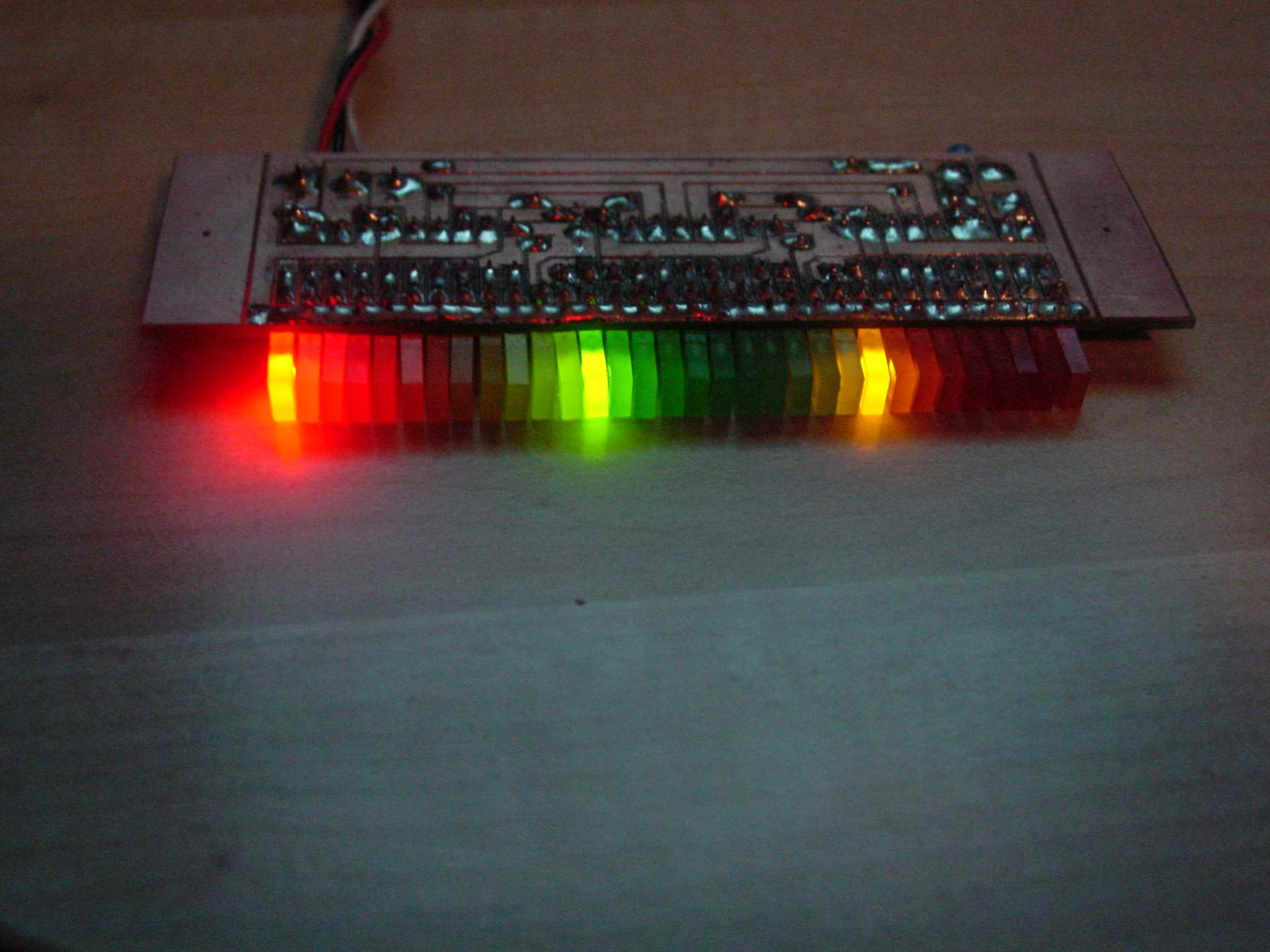

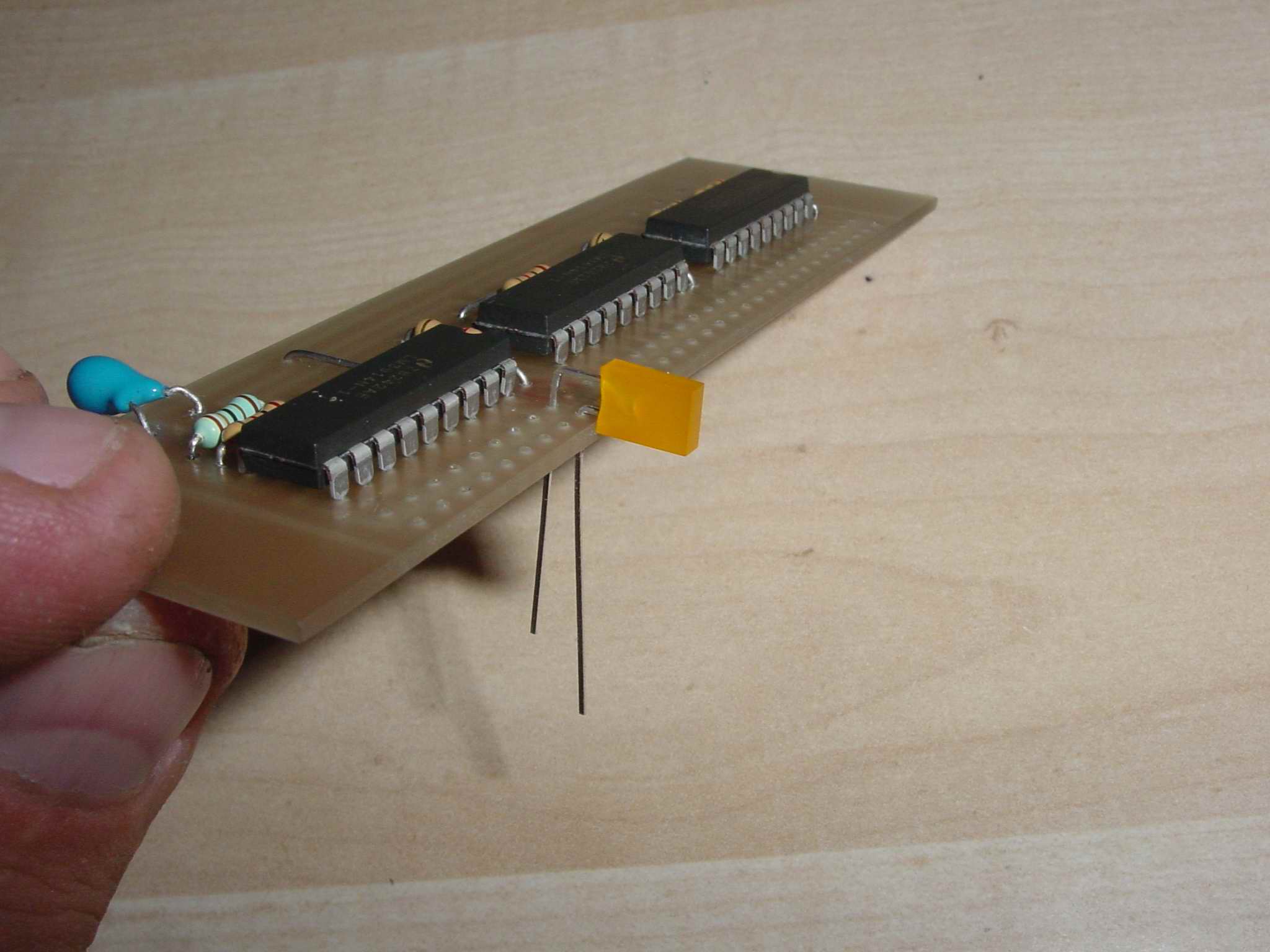

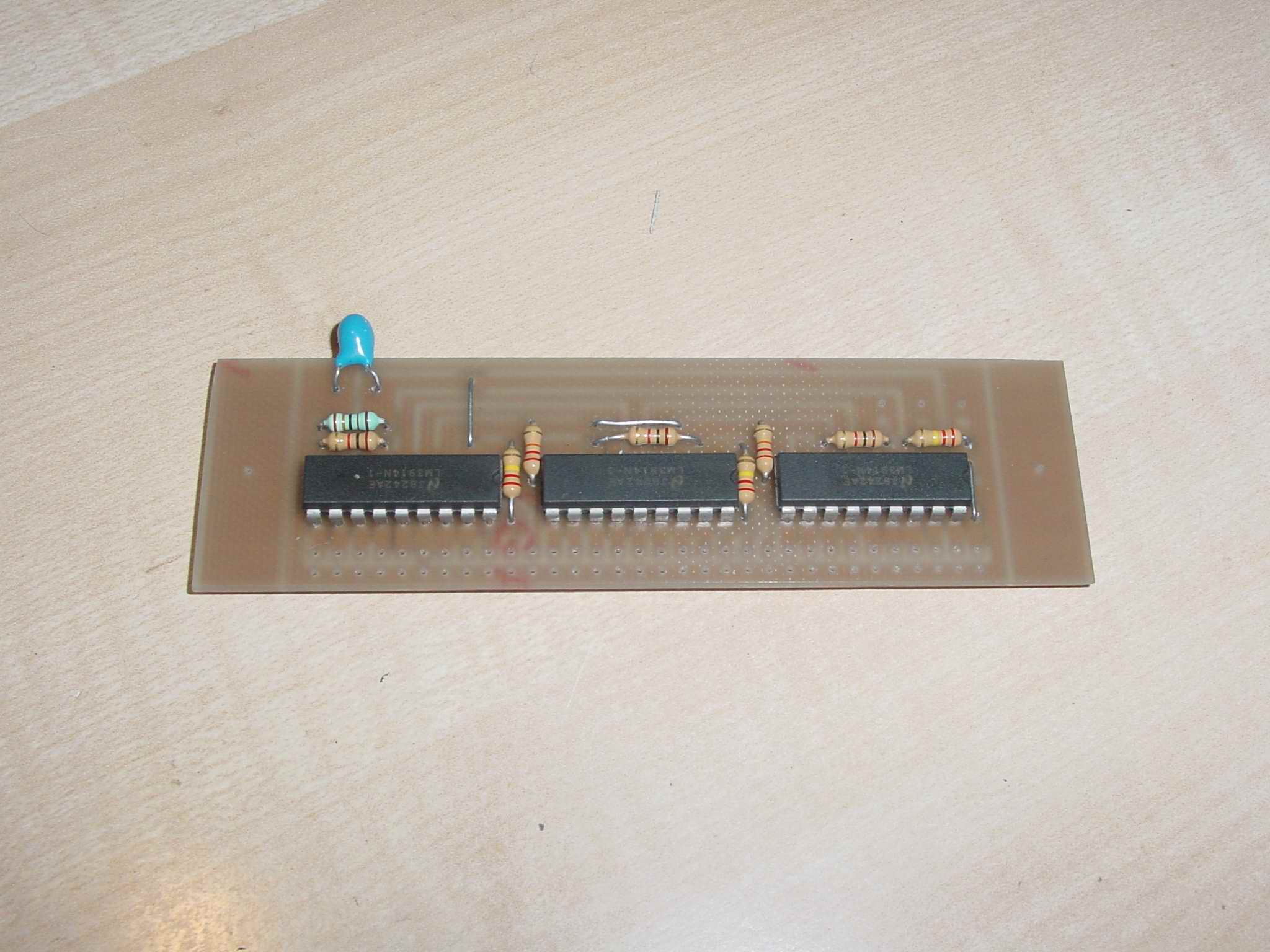

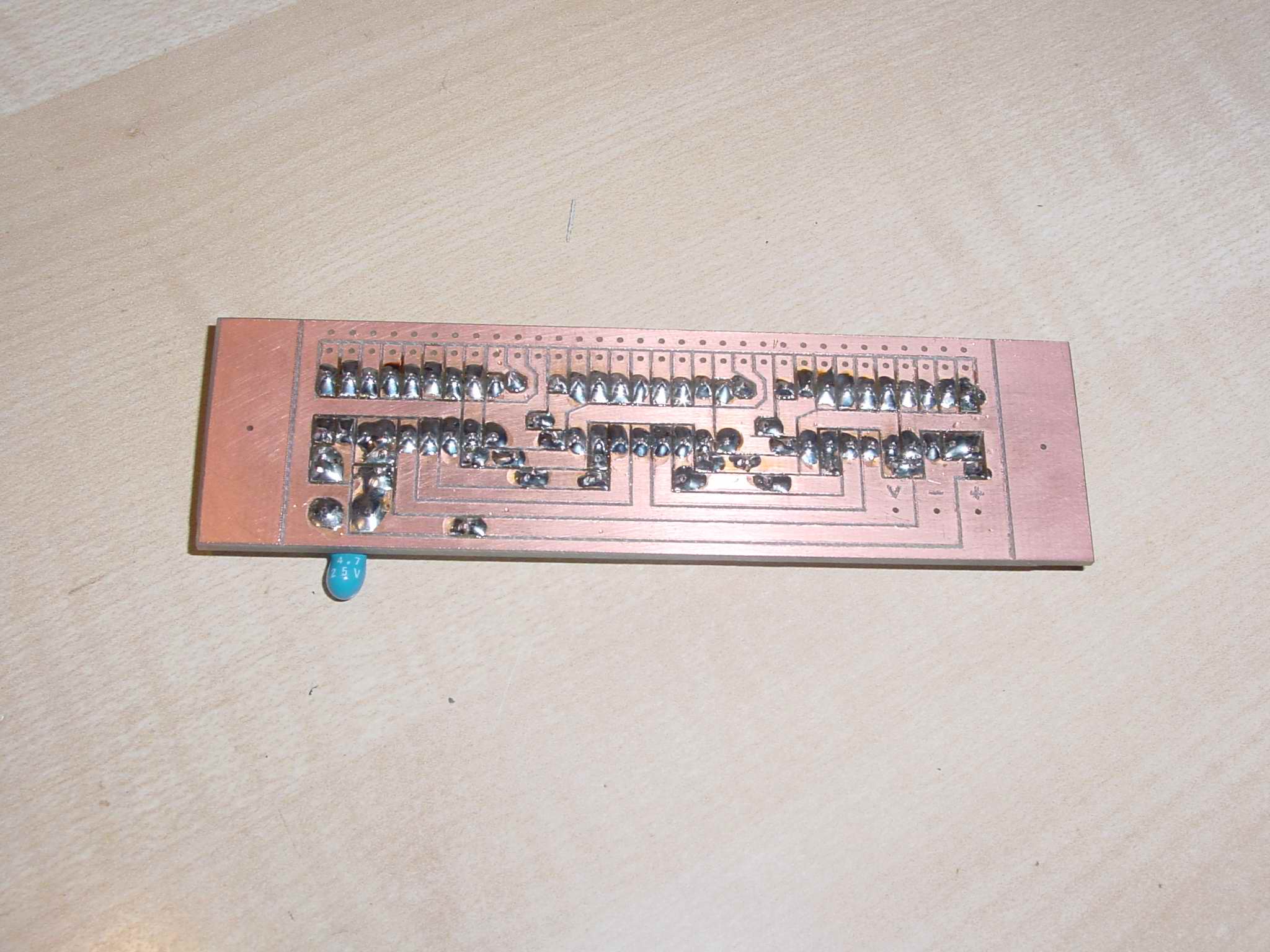

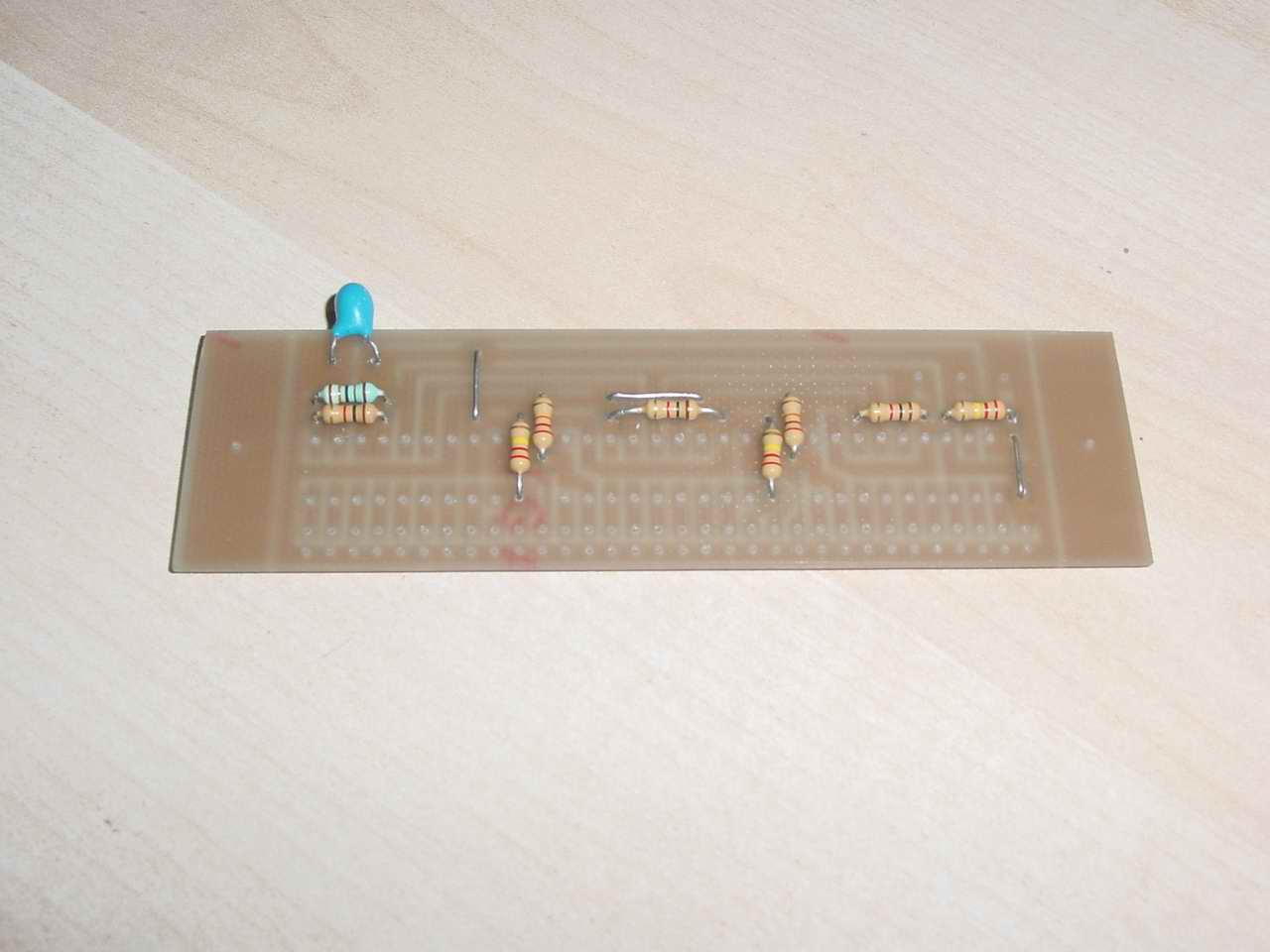

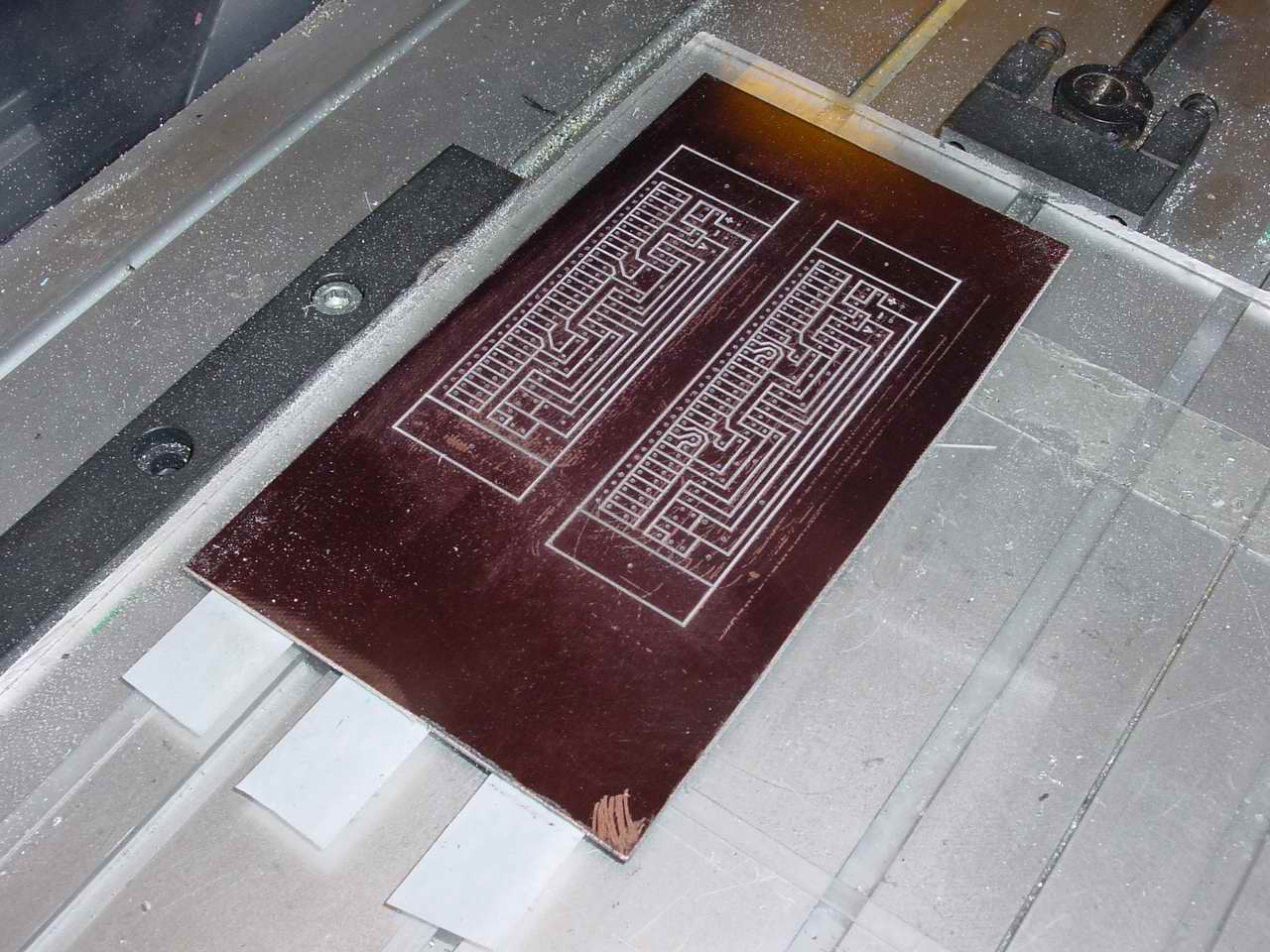

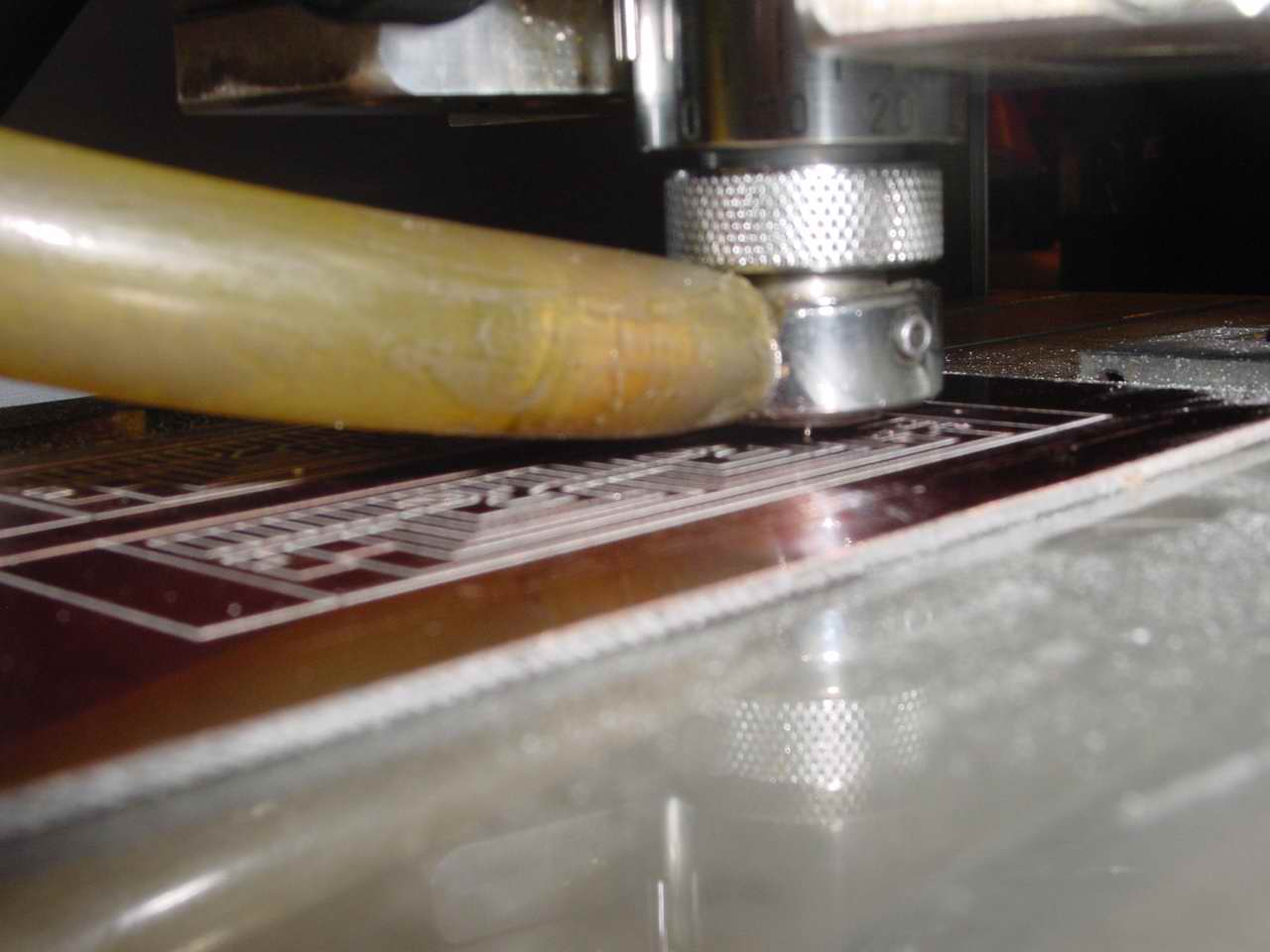

I designed this 30-LED meter to use with my wideband lambda. ( http://www.diy-wb.com/ )

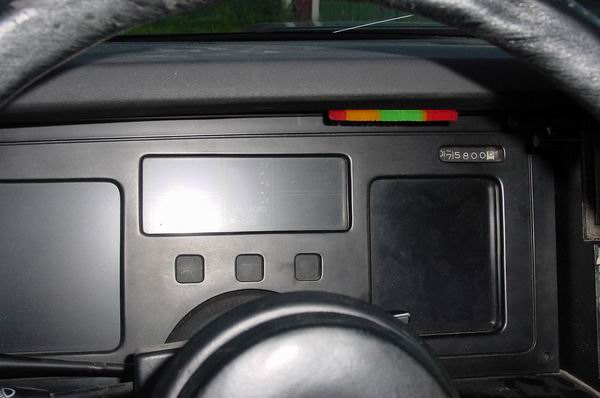

I wanted to have a slim meter to mount under the dash with only the row of LED's visible.

The voltage range is 1.5 Volts for rich ( Lambda 0.70 , AFR 10 ) to 3.0 Volts for lean ( Lambda 1.44 , AFR 21 ).

For reference I added two additional LED's that are lit all the time.
One green for Lambda 0.86 (Maximum power).
One yellow for lambda 1.05 ( Best fuel economy ).

I used green LED's between max power and max fuel economy.
I used yellow LED's above the max power LED and up to lambda 0.75 (AFR 11). That is the range used for supercharged vehicles.
I used red LED's for values leaner than the Best fuel economy LED and for values richer than lambda 0.75 (AFR 11).


Click Here to see the meter in action

Very rich

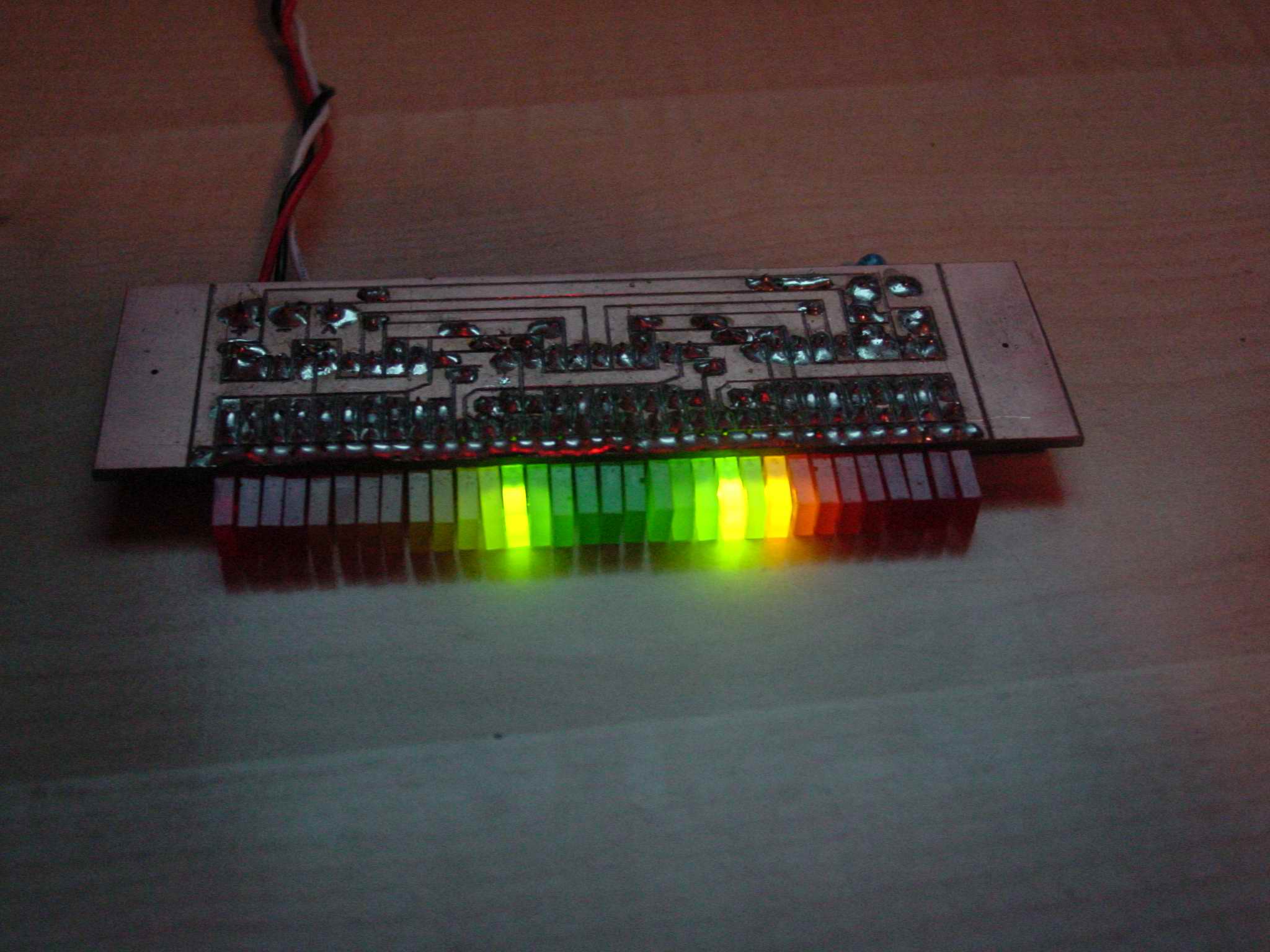

Stoichiometric

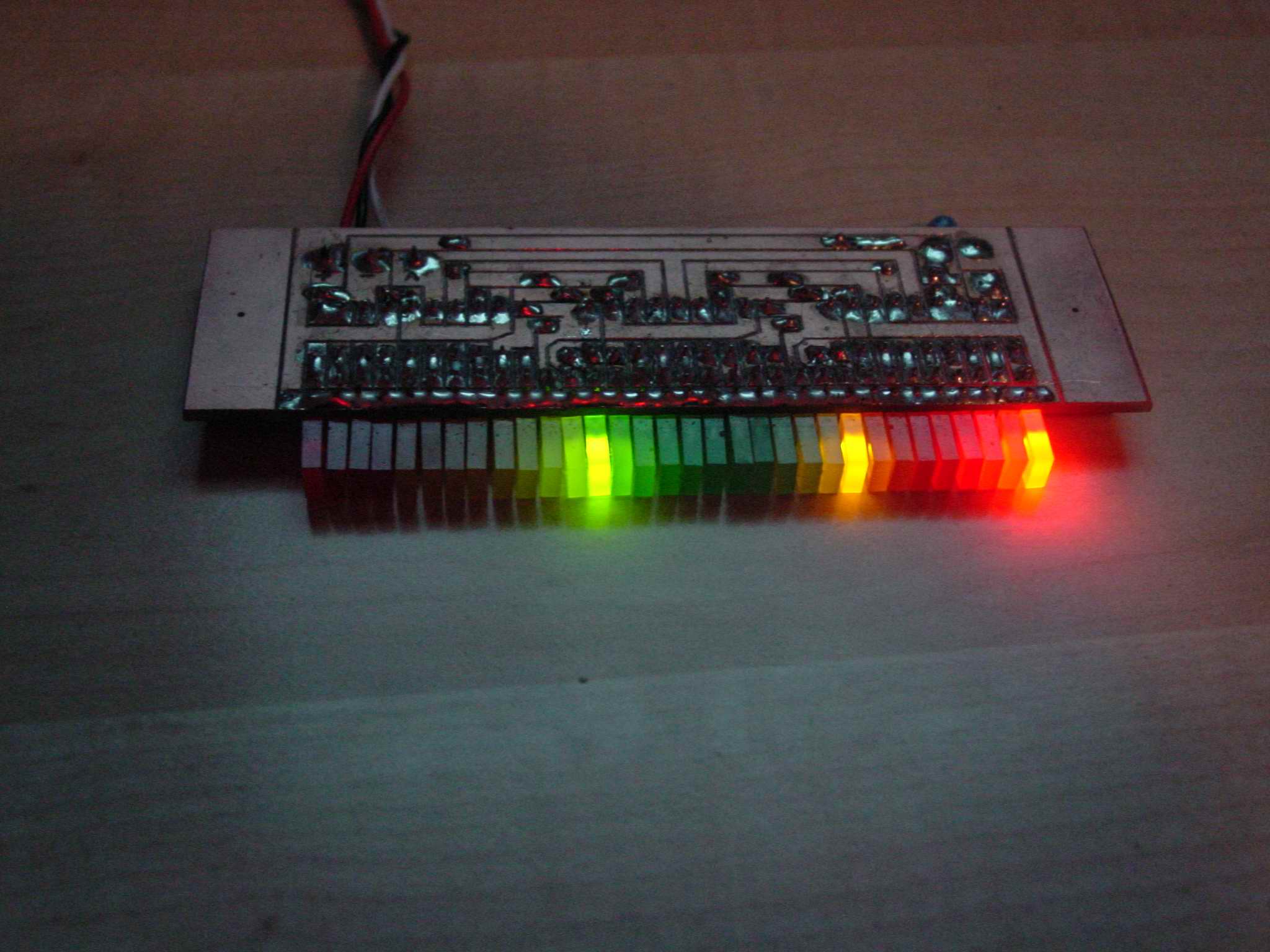

Very lean




Author: Jonas Bylund

http://jobywbmeter.webhop.net



Copyright 2003. All Rights Reserved.
